Sinotruck Sidewall Semi Trailer Truck

Dimension: 12500x2500x3260mm
Weight (KG): Max.70 tons
Axle: 2/3/4/5/6
King Pin: 90#
Landing Gear: JOST brand

Category：

SEMI TRAILER

Keywords：

SEMI TRAILER

sinotruklhl@outlook.com

E-mail

+8615966067565

Related Products

Message

Sinotruck Sidewall Semi Trailer Truck

Sinotruck Sidewall Semi Trailer Truck engineered to deliver exceptional performance and unparalleled durability,

this 60 ton 3 axle drop side semi trailer is the ultimate solution for your hauling needs.

Product Description

Features

With a staggering 60-ton load capacity, the 60 ton 3 axle drop side semi trailer for sale is built to handle the toughest and heaviest loads.

Whether you’re transporting construction materials, machinery, or other oversized cargo, this trailer has the strength and capacity to get the job done efficiently. The drop side feature of this 60 ton 3 axle drop side semi trailer for sale provides unmatched convenience and flexibility. Loading and unloading your cargo becomes a breeze, thanks to the easy-access sides that can be lowered.

Product Name		3 Axle Side Wall Semi Trailer
Usage		Transport of Cargo Goods and Container
Weight	Loading Weight	60Ton
Overall Size		12500x2500x2200mm
Frame	Design/ Welding Technology	Heavy Duty and Extra Durablity Designed; Welding by Automatic Submerged-Arc Processes
	Main Beam	High Strength T700 Steel. Upper Plate Thickness is 14mm, Down Plate Thickness is 16mm, Middle Plate Thickness is 8mm.
	Side Beam	16#Channel Steel
	Platform Plate	3mm Diamond Plate
Parts	Axle	FUWA 3 Axle
	King Pin	2.0 or 3.5 Inch Bolts Type or Welding Type
	Suspension	Mechanical Suspension, Thickening
	Leaf Spring	Heavy Duty Standard Leaf Spring 90(W)mm×13(Thickness)mm×10(Layer)
	Laning Gear	Standard 28Ton
	Tire	*12R22.5 12 Pieces**
	Steel Rim	*9.00×22.5 12 Pieces**
	Brake System	Dual Line Braking System
	ABS	Without ABS(Optional)
	Electrical	24V, 7 Pin Socket, One Set 7-Core Standard Cable (Rear and Tail Combination Lights, Side Marker Lights, License Plate Lights, Brake Lights)
Painting		Two Component Paint
Spare Tire Frame		2 Sets
Tool Box		1 Set(1×0.5×0.5M)

Versatile Easy Loading and Unloading

This trailer is designed to accommodate 20, 40, 45, and 48ft containers, Sinotruck Low Bed Trailer Truck with a standard load capacity of 80 tons,

providing flexibility in transporting different sizes of cargo. allowing an overload of 25%. It is suitable for the transportation of large

machinery, large ores, but also heavy goods such as steel coils and

prefabricated steel frames.

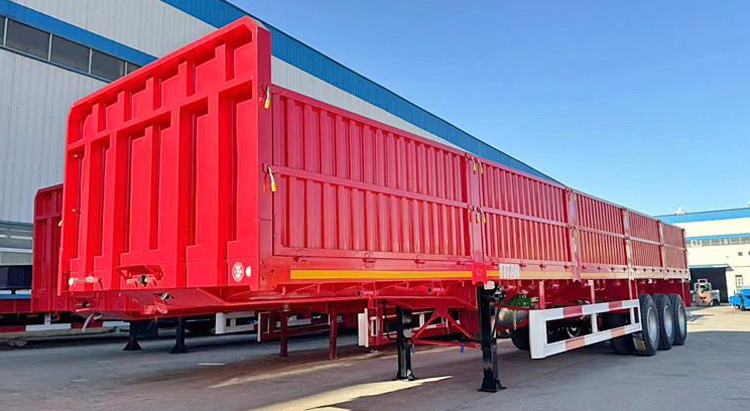

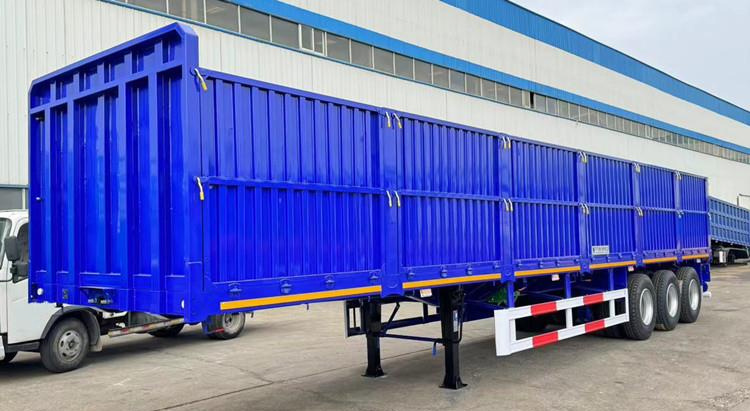

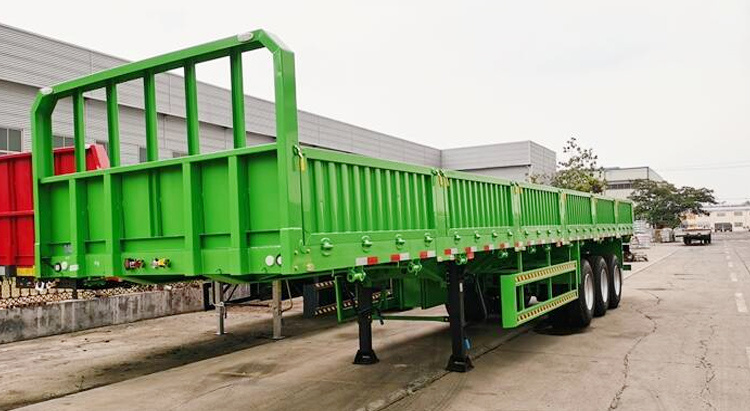

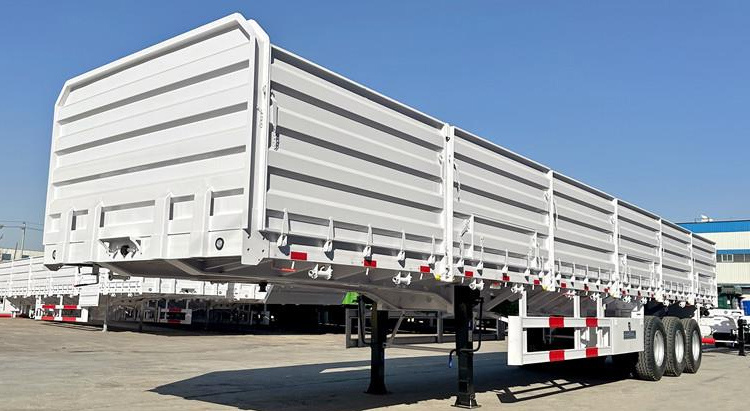

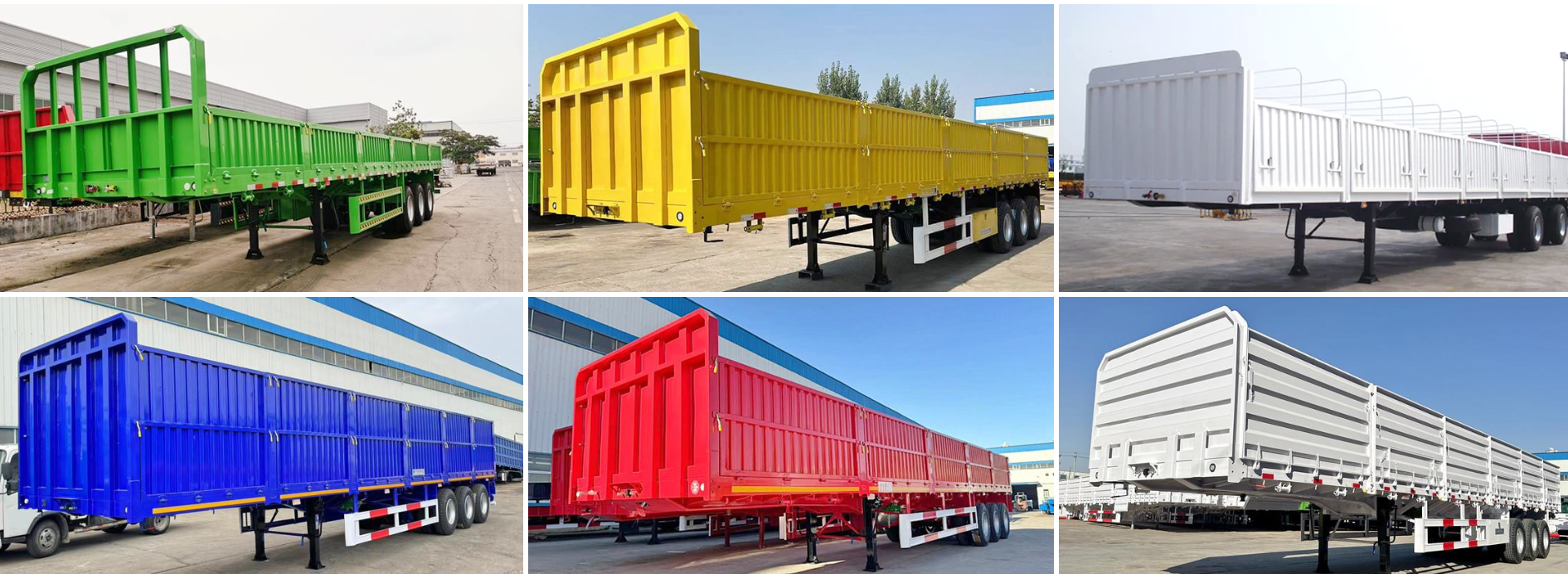

Gallery

Sinotruck Sidewall Semi Trailer has a carrying capacity of 60 tonnes. Customised side wall height, body length and other details are available. We always use the best quality materials to produce 3 axle sidewall semi trailer.
